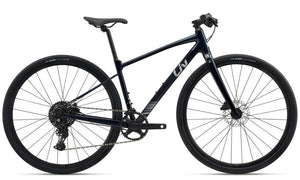

Liv 2025 Thrive 2

Please contact store for availability 04 589 2822 or support@cyclescience.co.nz

Specifications

Liv 2025 Thrive 2

Frame

Colour: Cosmos Navy
Frame: ALUXX-Grade Aluminium
Fork: Advanced-Grade Composite, composite OverDrive steerer
Shock: NA

Drivetrain

Crankset: FSA Omega AGX+, 42 XS:165mm, S:165mm, M:170mm, L:172.5mm
Pedals: NA
Chain: KMC X9
Bottom Bracket: Threaded
Rear Derailleur: Shimano Cues U4000
Front Derailleur: NA
Derailleur Shifter: Shimano Cues U4000, 1x9
Freewheel/Cassette: Shimano CSLG3009, 11x41

Wheels

Tyres: Maxxis Re-Fuse, 700x40c, tubeless
Wheels/Rims: Giant S-X2 Disc wheelset
Hubs: Giant alloy, 12mm thru-axle

Braking System

Brakes: Tektro HD-R280 hydraulic [F]160mm, [R]160mm
Brake Levers: Tektro HD-R280

Other

Handlebar: Giant Sport, flat, 31.8mm
Stem: Giant Contact XS:80mm, S:80mm, M:90mm, L:100mm
Saddle: Liv ErgoMax
Seat Post: Giant D-Fuse, alloy

Geometry

Liv 2025 Thrive 2

XS

148 cm 163 cm
S

158 cm 169 cm
M

164 cm 175 cm
L

170 cm 183 cm

		XS	S	M	L
A	SEAT TUBE LENGTH (mm)	350	400	450	500
B	SEAT TUBE ANGLE	74.5°	74.0°	73.5°	73.0°
C	TOP TUBE LENGTH (mm)	525	540	560	580
D	HEAD TUBE LENGTH (mm)	110	135	165	195
E	HEAD TUBE ANGLE	70.5°	71.0°	71.5°	71.5°
F	FORK RAKE (mm)	50	50	50	50
G	TRAIL (mm)	72.8	69.5	66.2	66.2
H	WHEELBASE (mm)	1014	1020	1031	1046
I	CHAIN STAY LENGTH (mm)	425	425	425	425
J	BOTTOM BRACKET DROP (mm)	70	70	70	70
K	STACK (mm)	534	560	590	618
L	REACH (mm)	376	380	385	391
M	STAND OVER HEIGHT (mm)	680	710	745	770
O	STEM LENGTH (mm)	80	80	90	100
P	CRANK LENGTH (mm)	165	170	170	172
Q	WHEEL SIZE	700C	700C	700C	700C
