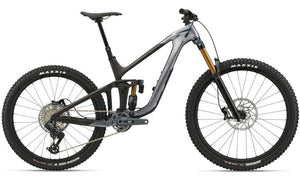

Giant 2025 Reign Advanced 1

$11,499.00

Tax included. Shipping calculated at checkout.

Description
Specifications
Geometry

Description

Giant 2025 Reign Advanced 1

Specifications

Giant 2025 Reign Advanced 1

Frame

Colour: Mercury/Raw Carbon
Frame: Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
Fork: Fox 38 Factory, 170mm, GRIP X2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
Shock: Fox Float X2 Factory, 2 position, custom tuned for Giant

Drivetrain

Crankset: SRAM GX T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Pedals: NA
Chain: SRAM GX T-Type
Bottom Bracket: SRAM DUB, press fit
Rear Derailleur: SRAM GX Eagle T-Type AXS
Front Derailleur: NA
Derailleur Shifter: SRAM AXS Pod, 1x12
Freewheel/Cassette: SRAM GX, T-Type 10x52

Braking System

Brakes: TRP EVO DH-R, hydraulic, TRP 2.3mm rotors [F]220mm, [R]200mm
Brake Levers: TRP EVO DH-R, hydraulic

Wheels

Tyres: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxTerra, DD, TR tubeless
Wheels/Rims: Giant TRX Hookless Tubeless ready Carbon Fr: 29"", Rr: 27.5"" 30mm inner width
Hubs: Giant TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]

Other

Handlebar: Giant Contact TR35, alloy, 35mm
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
Saddle: Giant Romero SL
Seat Post: Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm

Geometry

Giant 2025 Reign Advanced 1

Available sizes may vary from country to country.

S

163 cm 172 cm
M

171 cm 180 cm
L

179 cm 188 cm
XL

187 cm 198 cm

		S	M	L	XL
A	Seat Tube Length (MM)	400	425	450	475
B	Seat Tube Angle	78.3°	78.3°	77.3°	77.3°
C	Top Tube Length (MM)	556	587	620	652
D	Head Tube Length (MM)	100	105	115	120
E	Head Tube Angle	63.5°	63.5°	63.5°	63.5°
F	Fork Rake (MM)	44	44	44	44
G	Trail (MM)	140.0	140.0	140.0	140.0
H	Wheelbase (MM)	1214	1246	1271	1304
I	Chain Stay Length (MM)	445	445	445	445
J	Bottom Bracket Drop (MM)	35	35	35	35
K	Stack (MM)	627	632	641	645
L	Reach (MM)	426	456	476	506
M	Stand Over Height (MM)	720	735	751	746
O	Stem Length (MM)	40	40	40	40
P	Crank Length (MM)	165	170	170	170
Q	Wheel Size	29"	29"	29"	29"

*Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.
